Materials：all kinds of corrugated paperboard(kraft and bleeched kraft、semi-coated board、honey comb panel）
Multi-pass scanning mode:300*600dpi , max 1400㎡/hour
Single-pass high speed mode: 200*600dpi，max 1.8m/s
300*600dpi，max 1.3m/s
600*600dpi，max 0.65m/s
PDF
Video

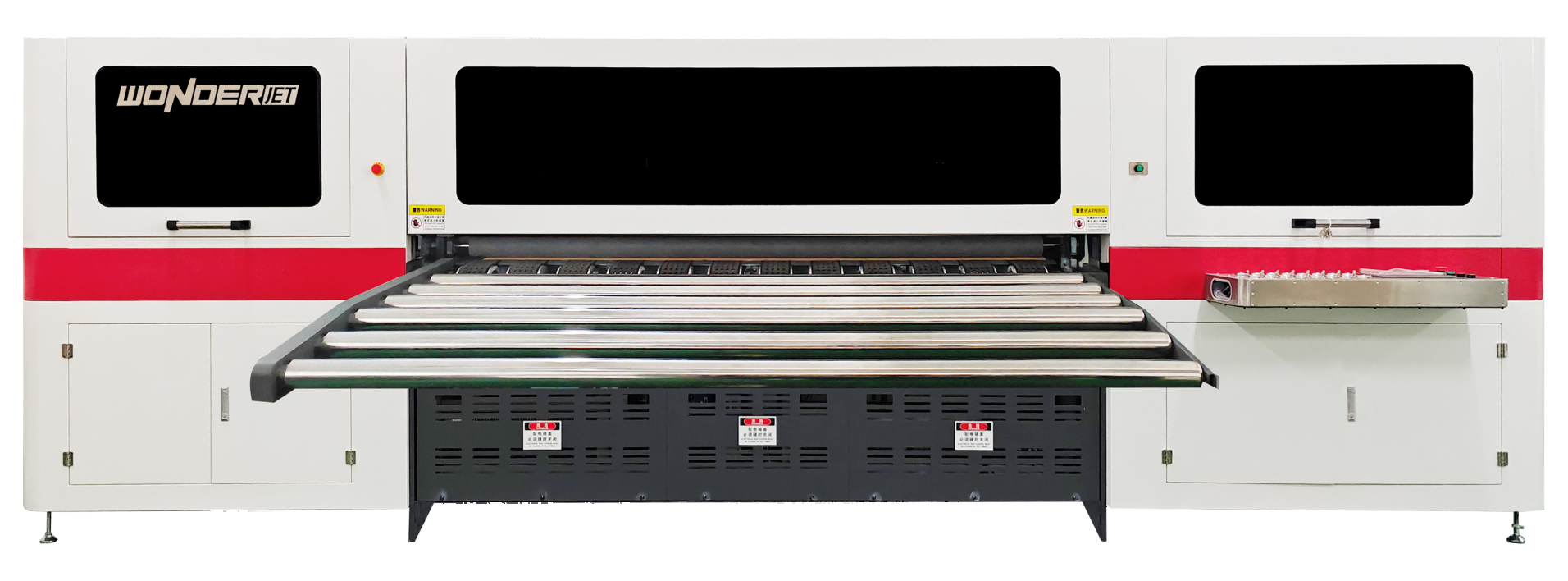

WDMS250 combines two different digital printing methods: Multi Pass high-precision scanning and Single Pass high-speed printing. You can choose to use the scanning mode to print large-size, large-area, high-precision, full-color carton orders, or instantly Switch to Single pass high-speed mode to print large quantities of orders to meet a wider range of corrugated digital printing needs, covering more than 70% of customer groups, reducing equipment investment, saving space, labor, maintenance and other costs, and greatly improving production efficiency. Another innovation in digital printing technology!
Article NO. | WDMS250-16A+ |
Printhead | Mirco-piezo hightest printhead |
Printhead quantity | 16 pieces |
Ink type | Special water-based dye ink, special water-based pigment ink |
Color model | Cyan,Magenta,Yellow,Black |
Medium distance | 2mm-4mm |
Printing resolution | ≥360*600 dpi |
Printing efficiency | Multi-pass scanning mode:Max 1400㎡/hour Single-pass high speed mode: Max 108m/min |
Printing format | Multi-pass scanning mode: Below 2500mm*1350mm under auto feeding,Below 2500mm*no limit under manual feeding; Single-pass high speed mode: Below 520mm*2400mm under auto feeding,Below 520mm*4500mm under manual feeding; |
Drying speed | Liner-board can be dry once print out, able to print on semi coated board if connect with drying system(optional) |
Working environment | 20oC-25oC Indoor，Humidity 50%-70% |
Ink supply | Automatic ink supply |
Feeding mode | Automatic leading edge feeding |
Material thickness | 1.2mm-35mm（max can be ordered to 50mm) |
Operate system | Professional RIP system,professional printing system |
Power supply | About 35 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H：5380*6080*1930(mm) |
Weight | 6300KGS |
Computer configuration requirements | Motherboard: B550M 3 PCI-E interface and network adapter with 1000M CPU: AMD R9 5950X Memory: 32G_3200MHz Solid State Drive: 500G SSD M.2 interface (NVMe protocol) ,reading speed is greater than 1500M per second Mechanical hard disk: 1T Power supply: above 500W Computer case: ATX case (small/small case is not supported) Display: 19-27 inches with wall-mounted mounting holes Keyboard : wired (wireless or Bluetooth is not recommended) Graphics card: GT210/710/730, etc., no special requirements LAN network card: 1000M usb network card (LAN file sharing) Machine network card: The machine needs to occupy a PCI-E interface Support system: Windows_10_64-bit Professional Edition/Enterprise Edition/Education Edition |
?Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
